Poly-Ripple Anti-clogging Wire Mesh Screens
Aperture / Opening: Diamond Opening, Weaving Opening, Triangle Opening
Specification: width up to 2.5m, no length limitation;
Edge: Raw Edge, plated sheathed, hooked, inner plated welded etc.;
Wire Materials: Spring Steel (High Carbon Steel), or Stainless steel (e.g. 304 & 316)
Poly Ripple Wire Mesh Screens Panels are designed for high abrasion applications where the material has a tendency to blind or peg. Produced using abrasion resistant polyurethane profiles molded over straight and crimped high quality steel wires, Poly Ripple Wire Mesh Screen could provide superior wear life.
Poly Ripple Anti-clogging Wire Mesh Screens are high production wire screens developed to enhance cleaning and non-blinding action, using independently vibrating weft wires. There are various designs that provide screening accuracy close to traditional wire mesh in square, triangle or slotted openings. These screens significantly reduce blinding and pegging in severe applications.
There are three types according to weaving way:
A B C
Self-cleaning screens are available in a side-tensioned or end-tensioned configuration.
Below are some specifications of C type for reference. Generally, Products can be customized.
| Aperture mm | Wire dia mm | Opening area % |
| 1.5 | 1.2-1.25 | 37-29 |
| 1.75 | 1.2-1.25 | 40 |
| 2 | 1.2-1.6 | 43-36 |
| 2.5 | 1.2-2 | 49-37 |
| 3 | 1.2-2 | 54-38 |
| 3.5 | 1.2-1.6 | 56-47 |
| 4 | 1.2-2.5 | 60-42 |
| 4.5 | 1.5-2.5 | 58-46 |
| 5 | 1.5-2.8 | 59-45 |
| 5.5 | 1.5-2.5 | 65-52 |
| 6 | 1.5-3.15 | 66-45 |
| 6.3 | 2.5-2.8 | 52-51 |
| 6.5 | 2-2.5 | 59-56 |
| 7 | 2-3.15 | 64-47 |
| 7.5 | 2-2.5 | 60 |
| 8 | 2-4 | 65-50 |
| 8.5 | 2-2.5 | 64 |
| 9 | 2-3.15 | 65-58 |
| 9.5 | 2.5-2.8 | 62 |
| 10 | 2-3.15 | 66-60 |
| 11 | 2.8-3.15 | 64 |
| 11.5 | 2.5-3.15 | 66 |
| 12 | 2.5-4 | 72-60 |
| 12.5 | 2.5-4 | 68-62 |
| 13 | 2-3.15 | 73-65 |
| 14 | 2.8-4 | 70-65 |
| 15 | 2.8-4 | 73-67 |
| 16 | 3-4 | 70-65 |
| 17 | 3-4 | 69 |
| 18 | 3-4 | 71-68 |
| 19 | 3-4 | 72 |
| 20 | 3-4 | 79-70 |
| 21 | 3-4 | 74 |
| 22 | 3-4 | 74-70 |
| 23 | 3-4 | 75 |
| 24 | 3-4 | 74-71 |
| 25 | 3-4 | 75-73 |
| 26 | 4-5 | 76-74 |
| 30 | 4-5 | 78-74 |
Anping Mam Ba Wire Mesh MFG Company, which is founded in 1989, has been devoted into wire cloth and screen media production for 26 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.
Mam Ba Wire Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands. For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high quality production, fast parts changes and a longer part wearlife will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
The Anti-blocking Screen is a method of weaving the wire mesh. The overlap points of warp are not prominent, and the surface is flat.
Anti-blocking Screen is easy to leak, wear-resistant and corrosion-resistant.
Product Tags:
|
|

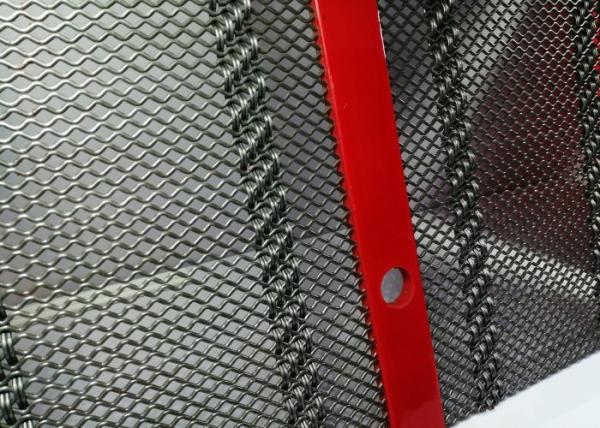

High Accuracy Steel Screen Mesh Poly Ripple Wire Mesh Screens Panels Images
|
